Backing
Compound

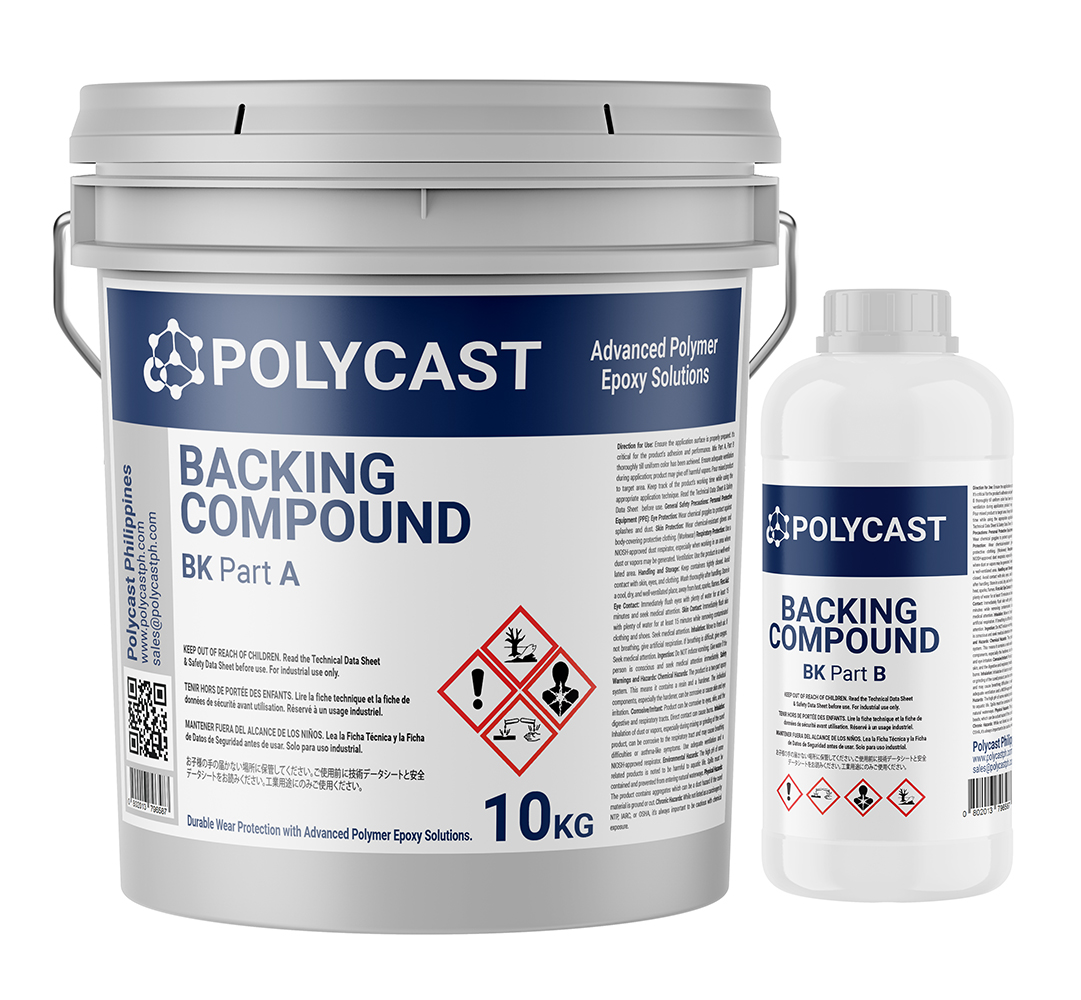

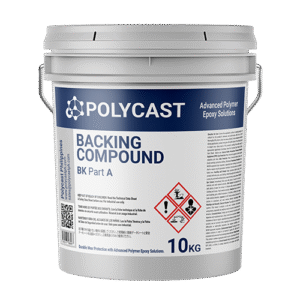

POLYCAST BK Backing Compound
POLYCAST BK is a backing material made of 100% solids-modified epoxy resin. It is specifically designed to act as a solid, incompressible layer that supports the wear liners within crushers. This support ensures the liners maintain their proper position and effectively transfer crushing forces to the machine’s frame. For use in heavy machinery such as vibrating screens, cone crushers, grinding mills, primary and gyratory crushers. This pourable, non-flammable Backing Compound is used to fill any gaps, voids, or irregularities between the wear liners and the backing plates or support structures. This process eliminates the formation of gaps that could lead to liner cavitation, loosening, or premature failure.
Kit Size / Contents
10 kg & 20kg (Product container may vary)
| Chemical Resistance at Room Temperature | Weight Loss | Duration of submersion |
|---|---|---|
|
Sodium Hydroxide |
<0.5% |
7 days |
|
Sulphuric Acid |
<0.5% |
7 days |
|
Hydrochloric Acid |
<0.5% |
7 days |
|
Phosphoric Acid |
<0.5% |
7 days |
| Curing | Time |
|---|---|
|
Gel time |
45 min at 25°C |
|
Working time |
30 min at 25°C |
|
Curing time |
4 hrs. at 25°C |
| Physical Properties | Typical Value |
|---|---|
|
Impact Resistance |
26 J |
|
Density |
2.1 g/cm³ |
|
Heat Resistance |
150°C to 180°C |
|
Wear Resistance |
1,81 mm/min |
Industrial uses

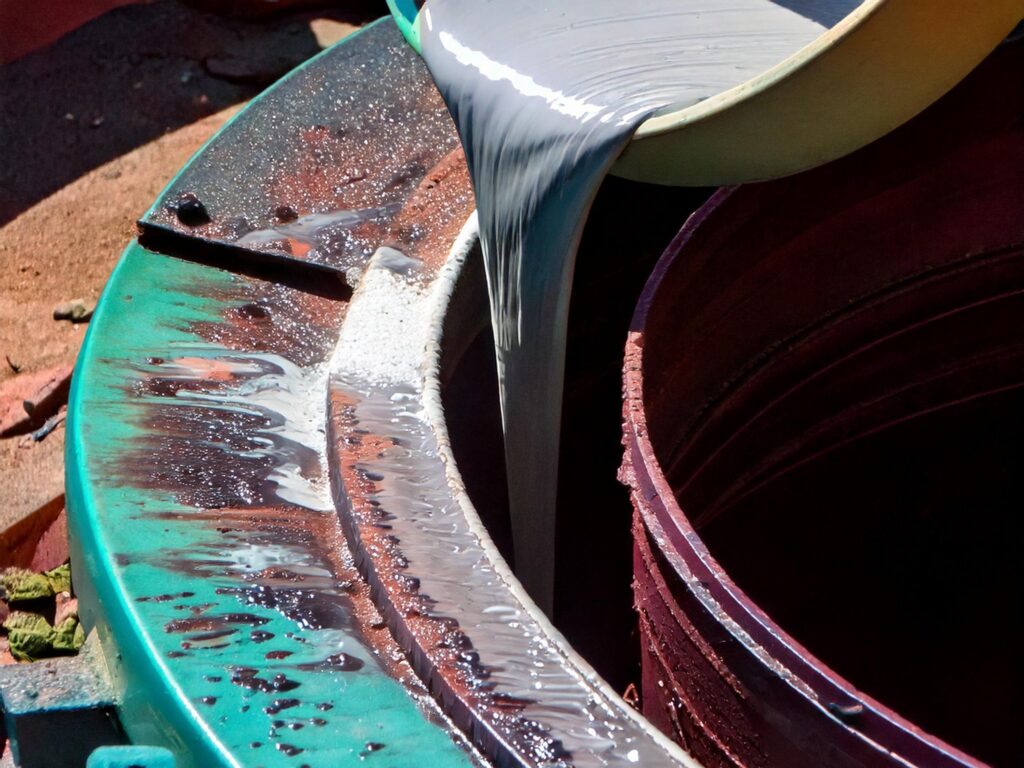

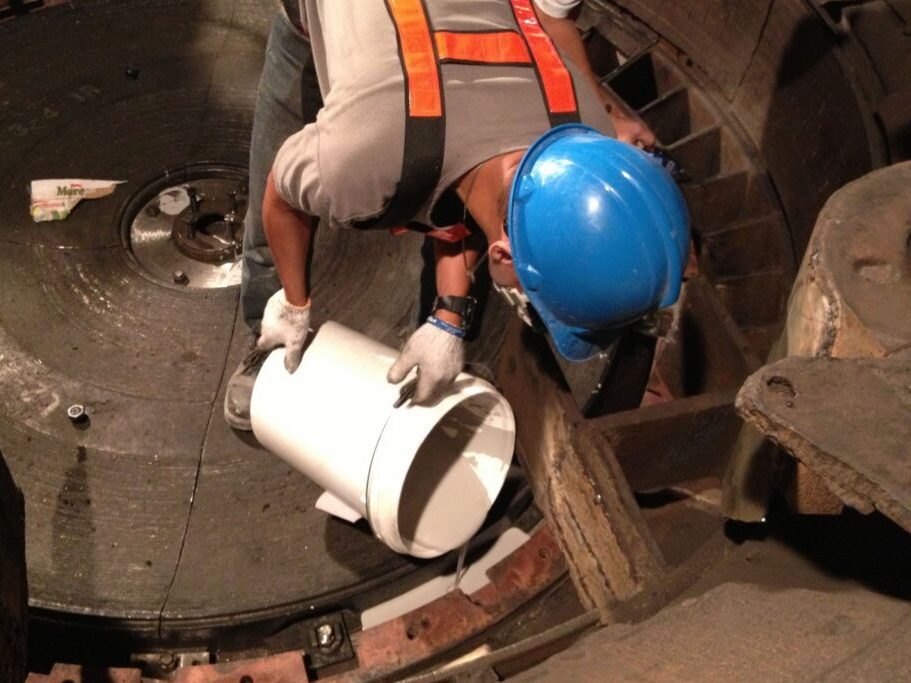

Heavy machinery such as cone crushers, vibrating screens, grinding mills, primary and gyratory crushers use this material to fill gaps in wear liners and backing plates.
Our product versatility is ideal for a wide range of industrial and commercial applications.
