Machine
Grout Epoxy

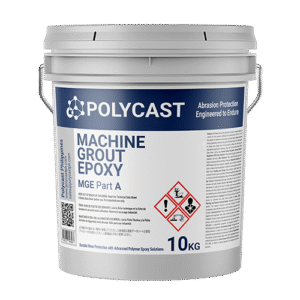

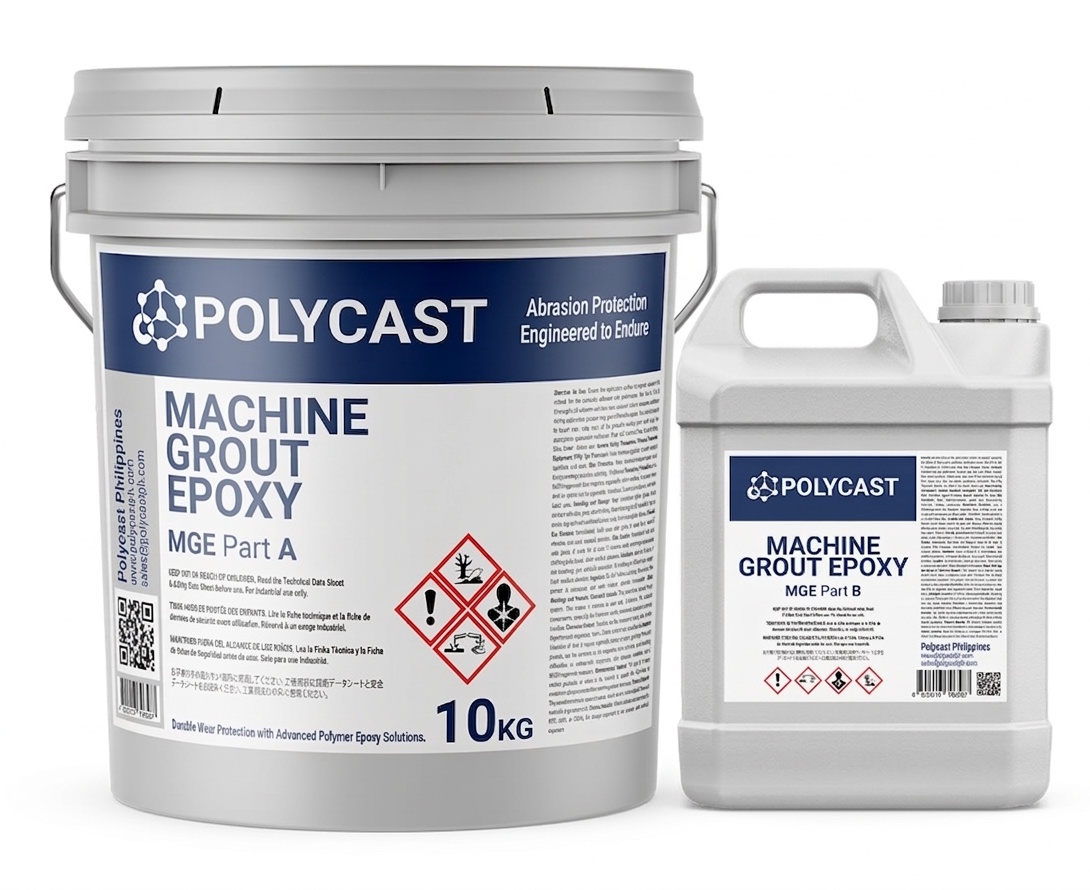

POLYCAST MGE Machine Grout Epoxy
POLYCAST MGE Machine Grout Epoxy is a three-component epoxy resin grout that is highly flowable and doesn’t contain any solvents. It has been specifically designed for the precise and secure installation of heavy machinery, equipment baseplates, and structural components, heavy engineering projects where dynamic loads are encountered. Machine Grout Epoxy is ideal for grouting where mechanical and chemical properties are crucial. It is used as a grout medium to transfer dynamic load effectively. This product is excellent for use in chemical plants, refineries, oil and gas, water industry, structural encasing, etc.

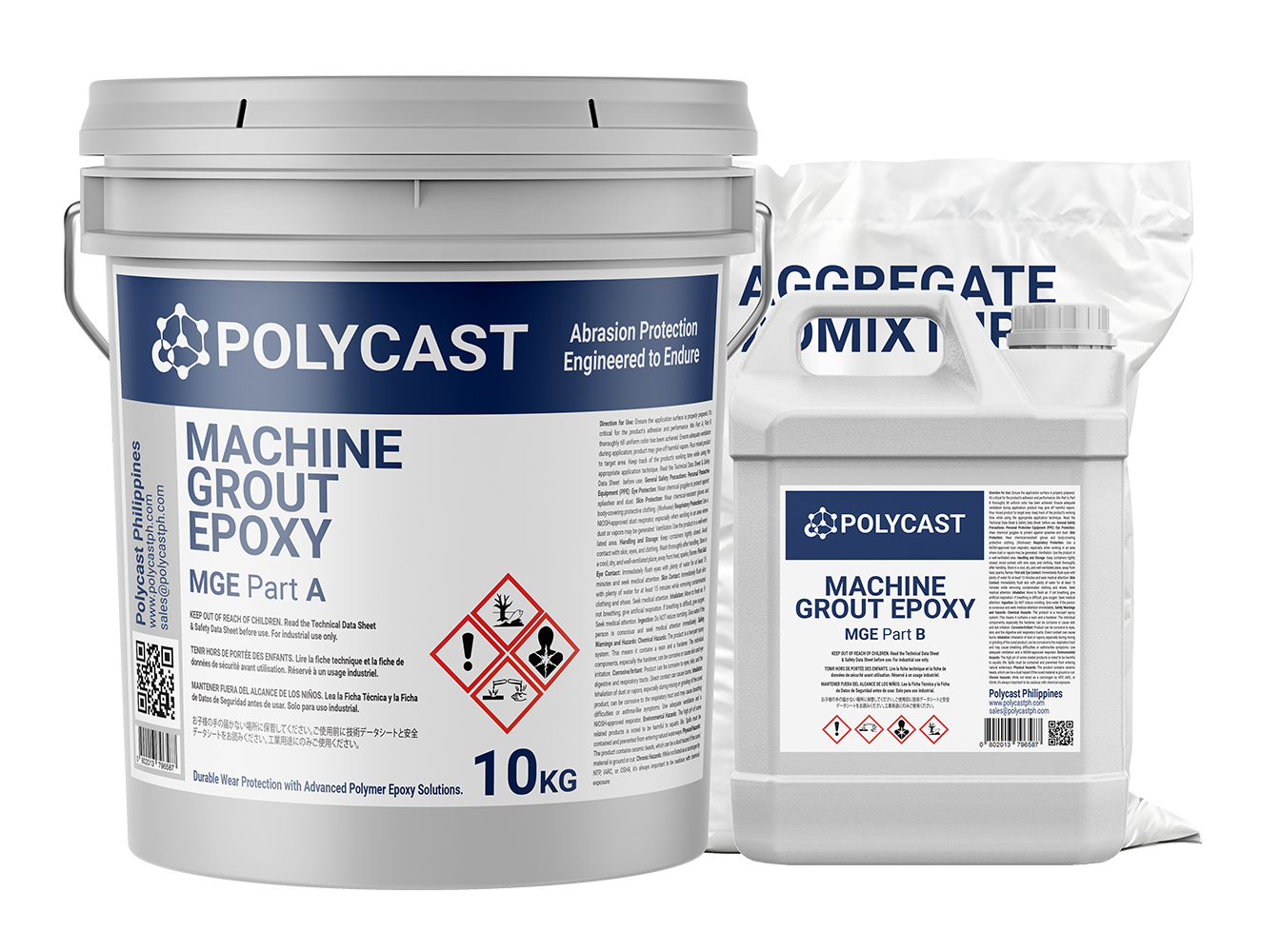

Kit Size / Contents
10 kg & 20kg (Product container may vary)
| Chemical Resistance at Room Temperature | Weight Loss | Duration of submersion |
|---|---|---|
|
Sodium Hydroxide |
<0.5% |
7 days |
|
Sulphuric Acid |
<0.5% |
7 days |
|
Hydrochloric Acid |
<0.5% |
7 days |
|
Phosphoric Acid |
<0.5% |
7 days |
| Curing | Time |
|---|---|
|
Gel time |
45 min at 25°C |
|
Working time |
30 min at 25°C |
|
Curing time |
4 hrs. at 25°C |
| Physical Properties | Typical Value |
|---|---|
|
Impact Resistance |
26 J |
|
Density |
2.1 g/cm³ |
|
Heat Resistance |
150°C to 180°C |
|
Wear Resistance |
1,81 mm/min |
Industrial uses

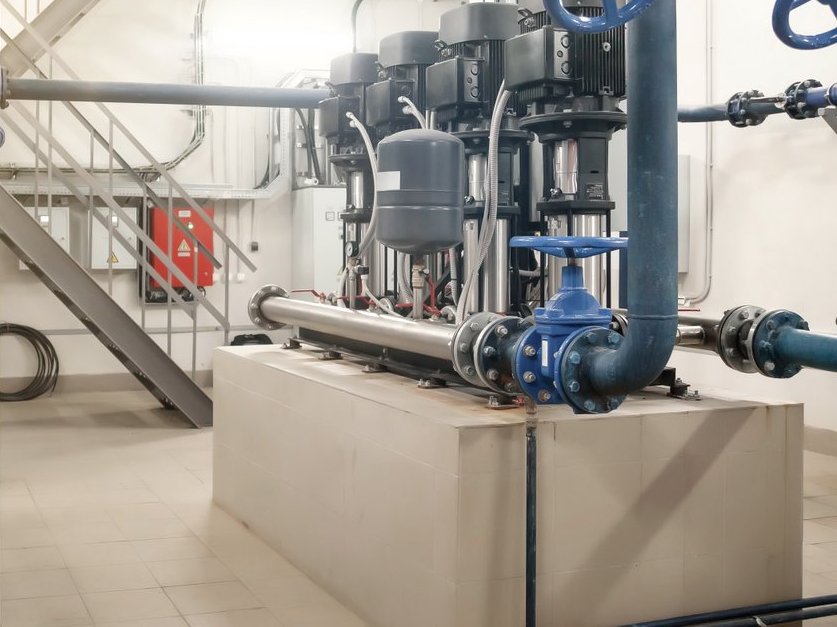

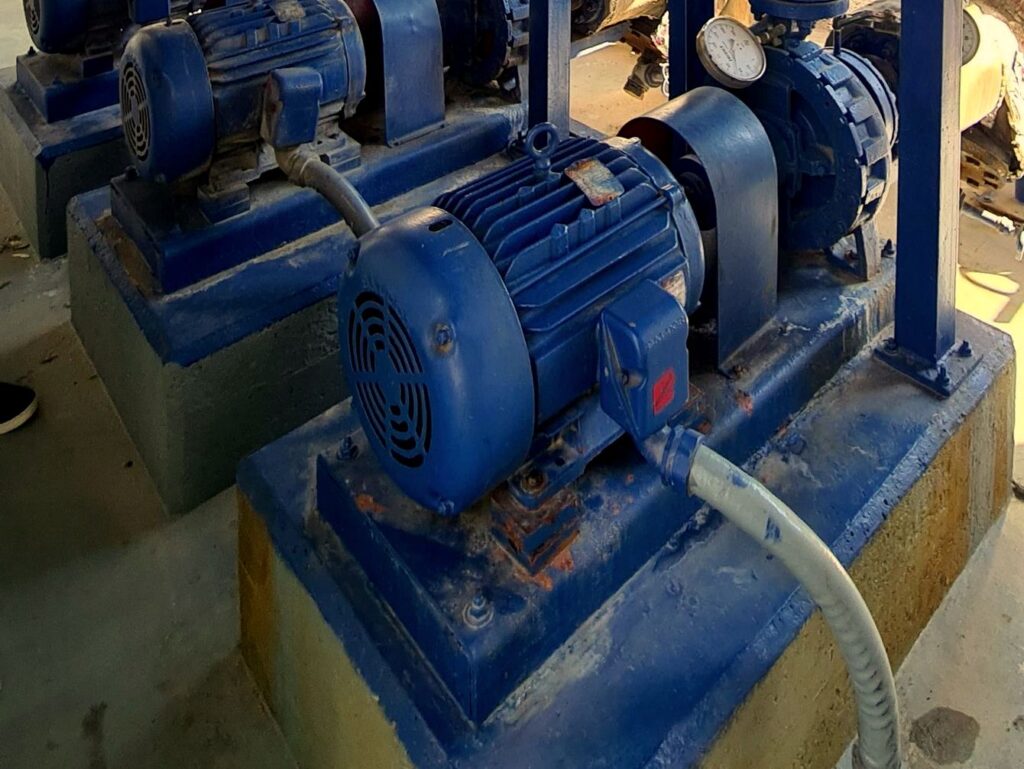

It is used for grouting various heavy machinery components, such as base plates, compressors, generators, turbines, pumps, bolt pockets, crane rails, bridge bearings, and stanchion base plates.
Our product versatility is ideal for a wide range of industrial and commercial applications.
