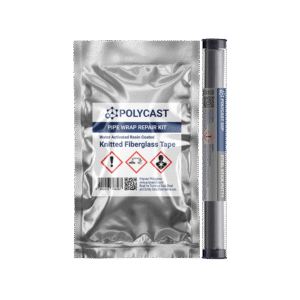

POLYCAST WRK Pipe Wrap Repair Kit
POLYCAST WRK Pipe Wrap Repair Kit provides a quick, reliable, and cost-effective solution for repairing leaks in industrial pipes. Say goodbye to costly shutdowns and time-consuming welding—our innovative bandages offer a permanent fix in just minutes, with no special tools required.

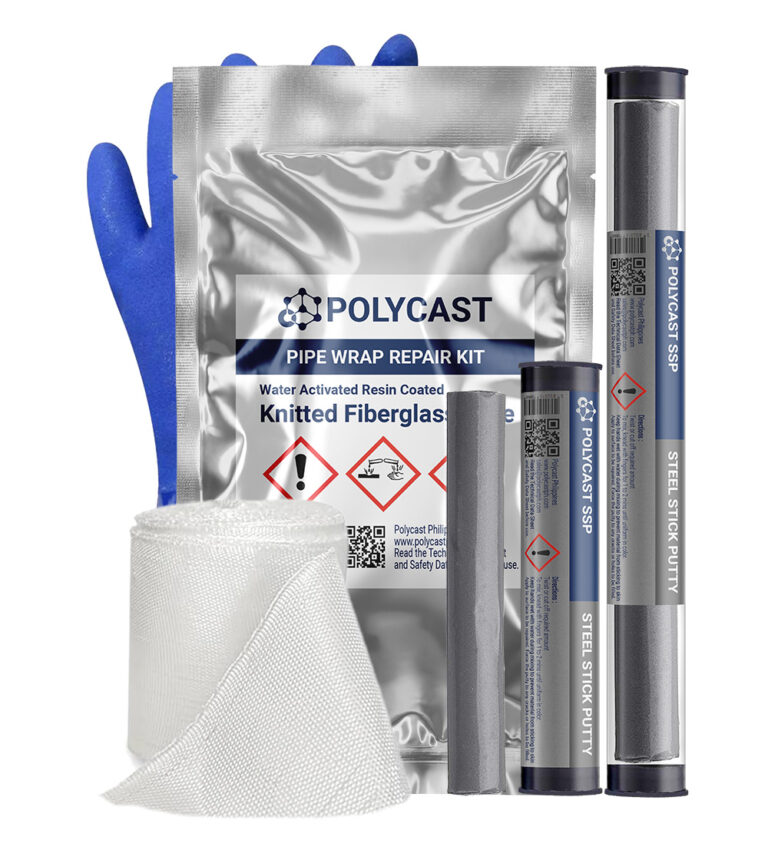

POLYCAST WRK Pipe Wrap Repair Kit is made from high-strength materials that resist corrosion and chemicals, ensuring a long-lasting repair. It features a two-part system specifically designed for emergency or temporary fixes of leaking or damaged pipes. The main components include a steel putty and water-activated fiberglass tape.

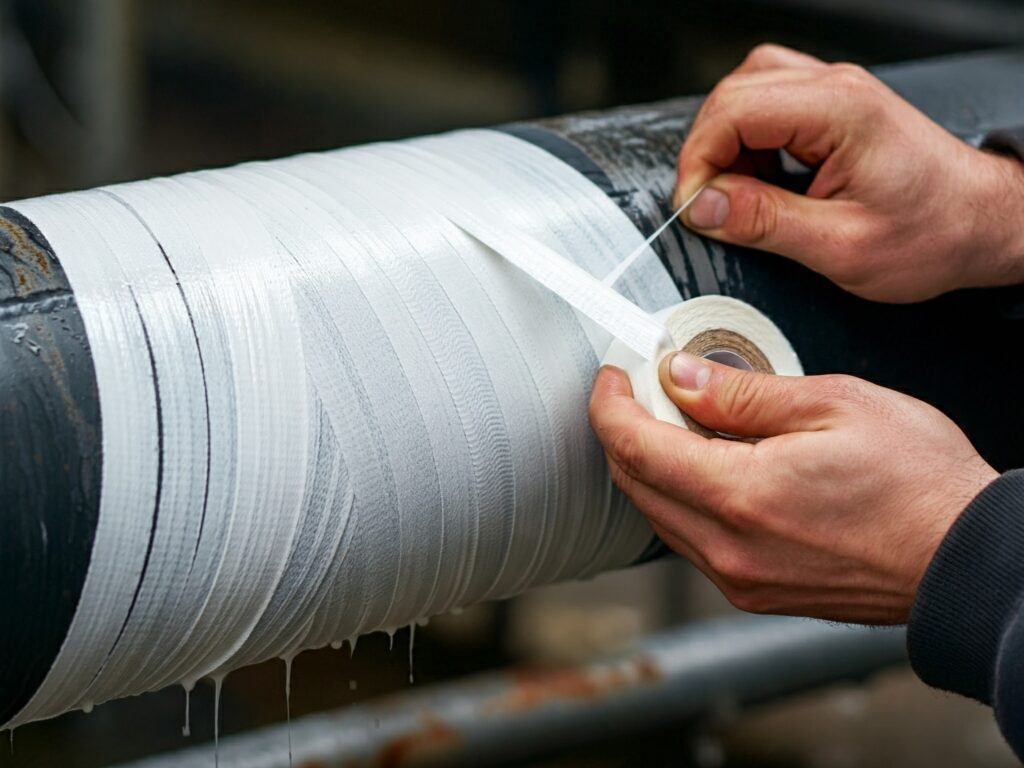

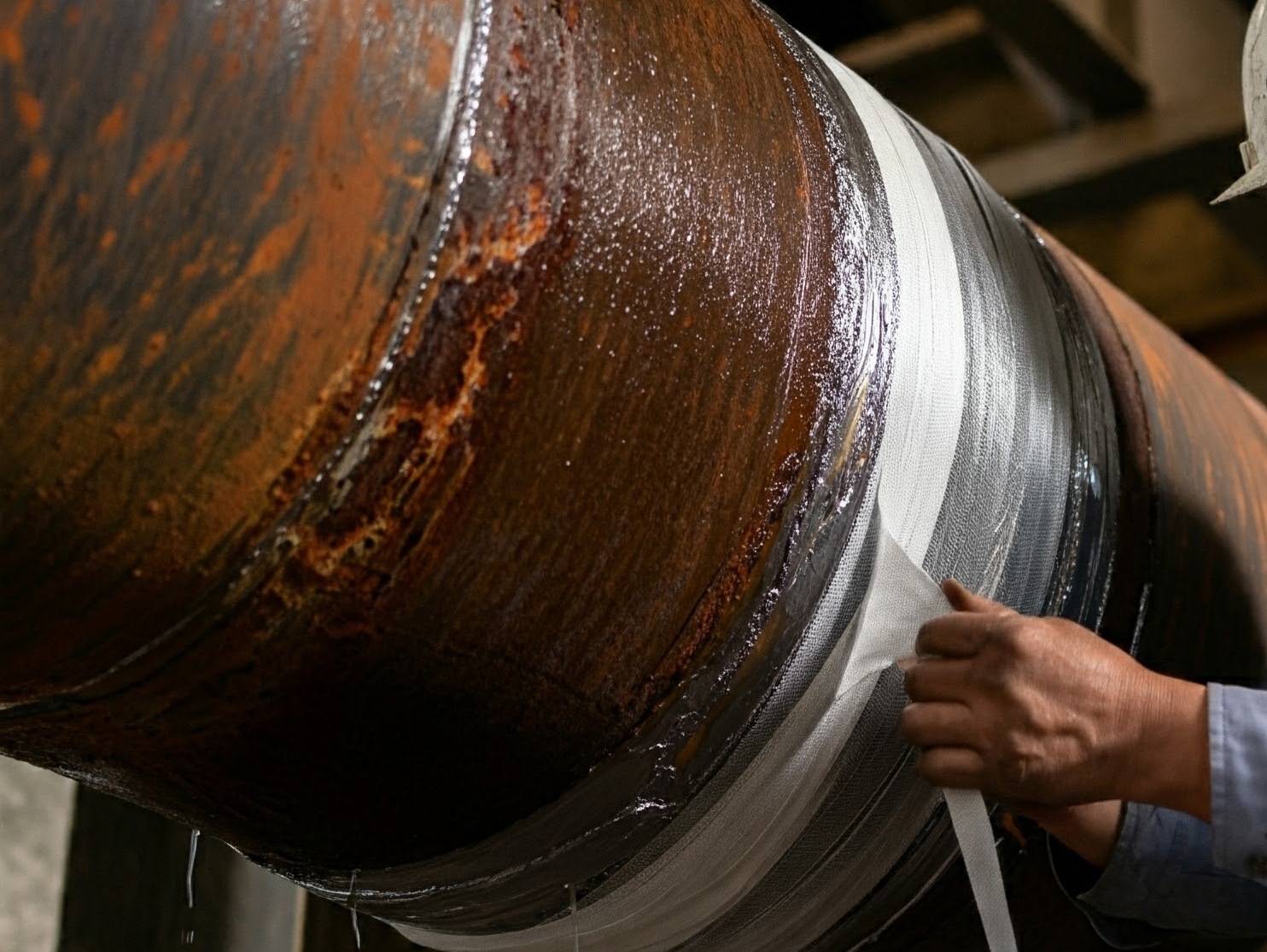

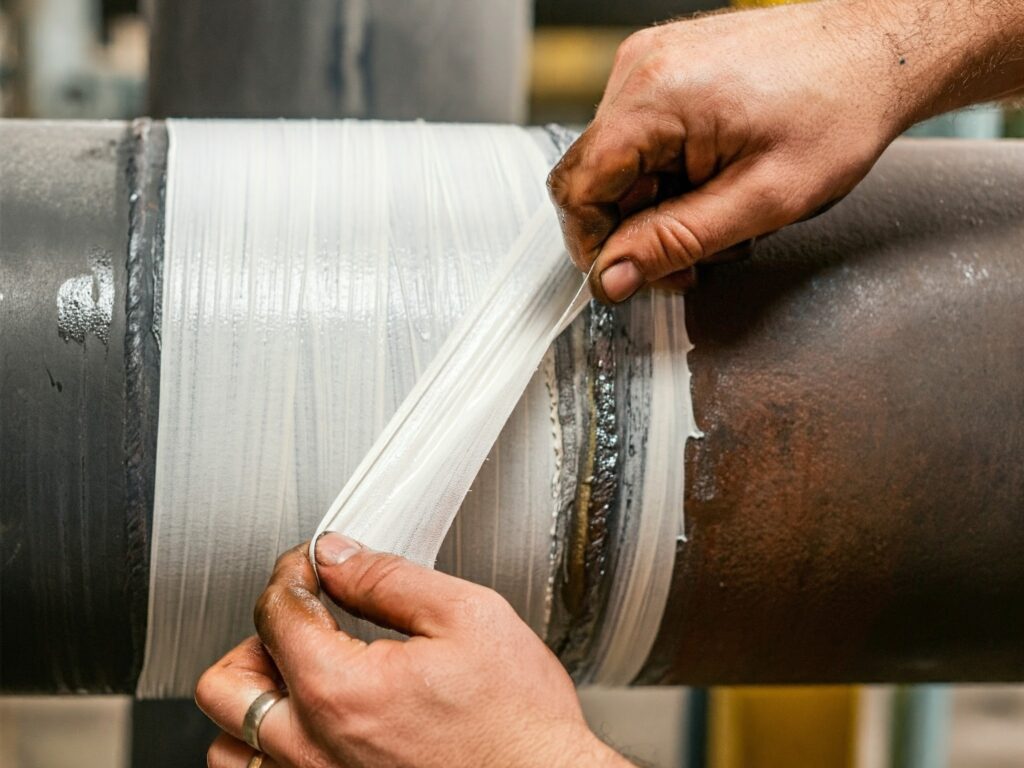

POLYCAST Steel Putty is used to seal the hole or crack in the pipe, providing the initial leak barrier. The woven fiberglass bandage, impregnated with a water-activated resin, is then wrapped tightly around the pipe over the putty, creating a rock-hard, impact-resistant shell.
Kit Size / Contents
5 cm x 360 cm Roll, 57g tube
5 cm x 360 cm Roll, 112g tube
| Wrap Physical Properties | Typical Value |
|---|---|
|
Working time |
3-5 Minutes at 20°C / 68°F |
|
Cured Material life |
10-20 years depending on repair quality, environmental conditions, pipe temp, etc. |
|
Initial cure time |
7-10 minutes at 20°C / 68°F |
|
Full cure time |
30 Minutes at 20°C / 68°F |
|
Maximum heat resistance |
150°C |
|
Tensile strength |
5075 Psi |
|
Pressure resistance |
400 Psi (Based on 10 layers) |
|
Shore D hardness |
70 |
| Wrap Chemical resistance | Typical Value |
|---|---|
|
Citric Acid <10% |
R |
|
Crude oil |
R |
|
Diesel |
R |
|
Formic acid <10% |
R |
|
Zinc chloride |
R |
|
Phosphoric acid <20-75% |
R |
|
Potassium carbonate |
R |
|
Sulphuric acid 30% |
R |
|
Hydrocloric acid |
R |
| Putty Specification | Typical Value |
|---|---|
|
Appearance |
Green, Gray, Black |
|
Packing |
28g/tube; 57g/tube |
|
Form |
Solid paste |
|
Flash point |
>350℃ |
|
Ignition temperature |
>550℃ |
|
Specific gravity |
1.40g/cm3 |
|
Solubility in water |
Virtually insoluble |
|
Compression resistance |
10000 Psi |
|
Tensile strength |
3000 Psi |
| Putty Specification | Typical Value |
|---|---|
|
Insulated |
280volts/mil |
|
Mixing time |
1 minute |
|
Process temperature |
+10℃ to +35℃ |
|
Curing temperature |
+6℃ to +40℃ |
|
Capable of bearing mechanical
loads (50% strength) |
60 min |
|
Final strength (100%) at+20℃ |
after 24hr |
|
VOC |
<1% |
|
Chemical resistance |
Hydrocarbons, ketones, alcohols, esters,
halocarbons, aqueous salt solutions, dilute acids and
bases |
Industrial uses
This product is designed as an on-site repair kit for fast and easy pipe repair. Works on a variety of pipe materials, including steel, iron, copper, PVC, and more.
Our product versatility is ideal for a wide range of industrial and commercial applications.
